Wholesale Price Aluminum Fireproof Board Factory - Fiberglass Grinding Wheel Mesh-DL5X5-240-Disc Reinforced Material – Ruifiber
Wholesale Price Aluminum Fireproof Board Factory - Fiberglass Grinding Wheel Mesh-DL5X5-240-Disc Reinforced Material – Ruifiber Detail:

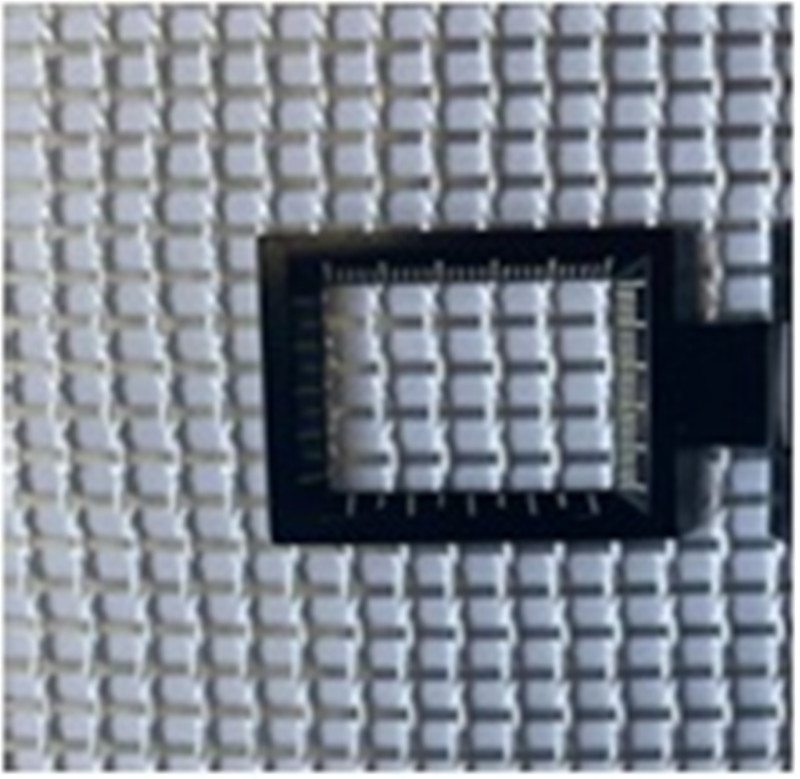

Fiberglass Grinding Wheel Brief Introduction
● High Strength, Low Extensibility
● Coating with Resin Easily, Flat Surface
● High Temperature Resistant
Improving of Weaving Technique
Weaving from yarns without twist: Reduce the damage on yarns during textile process so that to achieve better reinforcement for glass fiber discs; Theoretically speaking, yarns without twist will be thinner coalition yarns, could reduce the thickness of glass fiber discs(under data analysis), beneficial to thin or ultrathin grinding wheels.
New weaving technique: reduce the damage on wrap yarns during coalition process, uniform the tensile strength from wrap and fill direction, make better reinforcement for glass fiber discs. Also the new weaving technique can help reduce the thickness of products.
Fiberglass Grinding Wheel Mesh Data Sheet
| ITEM | WEIGHT(g/m2) | DENSITY COUNT(25mm) | TENSILE STRENGTH(N/50mm) | WOVEN STRUCTURE | ||
| WARP | WEFT | WARP | WEFT | |||
| DL5X5-240 | 240±5% | 5 | 5 | ≥1700 | ≥1800 | leno |
| RESULT | 1780 | 1988 | ||||
The regular supply of fiberglass grinding wheel mesh is DL5x5-240, DL5x5-320, DL6x6-190, DL8x8-170, DL10x10-90, etc.
With high strength and Low Extensibility, it can be used for cutting grinding wheel discs.
Comparison between C-glass & E-glass
Reinforcement for Fiberglass Grinding Wheel Mesh
Fiberglass grinding wheel mesh is usually used as a reinforcing material in composite materials, electrical insulation materials and thermal insulation materials, circuit boards and other fields of the national economy.
It is widely used in wall reinforcement, exterior wall insulation, roof waterproofing, etc., and can also be used to enhance wall materials such as cement, plastic, asphalt, marble, mosaic, etc. It is an ideal engineering material for the construction industry.
With features of high tensile strength and deflection resistance, good combination with abrasives, excellent heat resistance when cutting, it is the best base material for making different retinoid grinding wheels.
PACKING AND DELIVERY
Honors
Company Profile
Ruifiber is a industry and trade integration business, major in fiberglass products
Ruifiber is always dedicated to produce consistent products in line with our customers’ requirements and we want to be acknowledged for reliability, flexibility, responsivenss,innovative products and services.
