18 Years Factory Black Fiberglass Cloth - Fiberglass Grinding Wheel Mesh with High Strength and low elongation – Ruifiber Detail:
Fiberglass Grinding Wheel Brief Introduction
High tensile strength, allowing for use in hand lay-up process to produce large-area parts,
no airborne fiber when operating, good wet-through and fast wet-out in resins, rapid air
lease, high mechanical strength, superior acid corrosion resistance

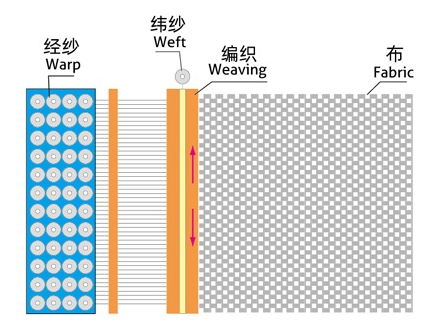

Weaving Process
Weaving fabrics are made on looms with warp or weft reinforcement threads interlaced with each other in varying configurations to give different fabric styles.
Fiberglass Grinding Wheel Mesh Data Sheet
| ITEM | WEIGHT(g/m2) | DENSITY COUNT(25mm) | TENSILE STRENGTH(N/50mm) | WOVEN STRUCTURE | ||
| WARP | WEFT | WARP | WEFT | |||
| DL5X5-190 | 190±5% | 5 | 5 | ≥1500 | ≥1500 | leno |
| DL5X5-240 | 240±5% | 5 | 5 | ≥1700 | ≥1800 | leno |
| DL5X5-260 | 260±5% | 5 | 5 | ≥2200 | ≥2200 | leno |
| DL5X5-320 | 320±5% | 5 | 5 | ≥2600 | ≥2600 | leno |
| DL6X6-100 | 100±5% | 6 | 6 | ≥800 | ≥800 | leno |
| DL6X6-190 | 190±5% | 6 | 6 | ≥1550 | ≥1550 | leno |
| DL8X8-125 | 125±5% | 8 | 8 | ≥1000 | ≥1000 | leno |
| DL8X8-170 | 170±5% | 8 | 8 | ≥1350 | ≥1350 | leno |
| DL8X8-260 | 260±5% | 8 | 8 | ≥2050 | ≥2050 | leno |
| DL8X8-320 | 320±5% | 8 | 8 | ≥2550 | ≥2550 | leno |
| DL10X10-100 | 100±5% | 10 | 10 | ≥800 | ≥800 | leno |
Rapid air lease reducing rolling out times, low resin consumption.
Features
Weaving Process
Woven fabrics are made on looms with warp or weft reinforcement threads interlaced with each other in varying configurations to give different fabric styles.
